30PIN ESP32 Devkit V1 Transparent Cover Din Rail Expansion Board DC 5V 12V 24V Power All Pin Led Out Module WiFi Smart Home DIY(with Box)
Product details
| Management number | 234138631 | Release Date | 2026/06/27 | List Price | $8.05 | Model Number | 234138631 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

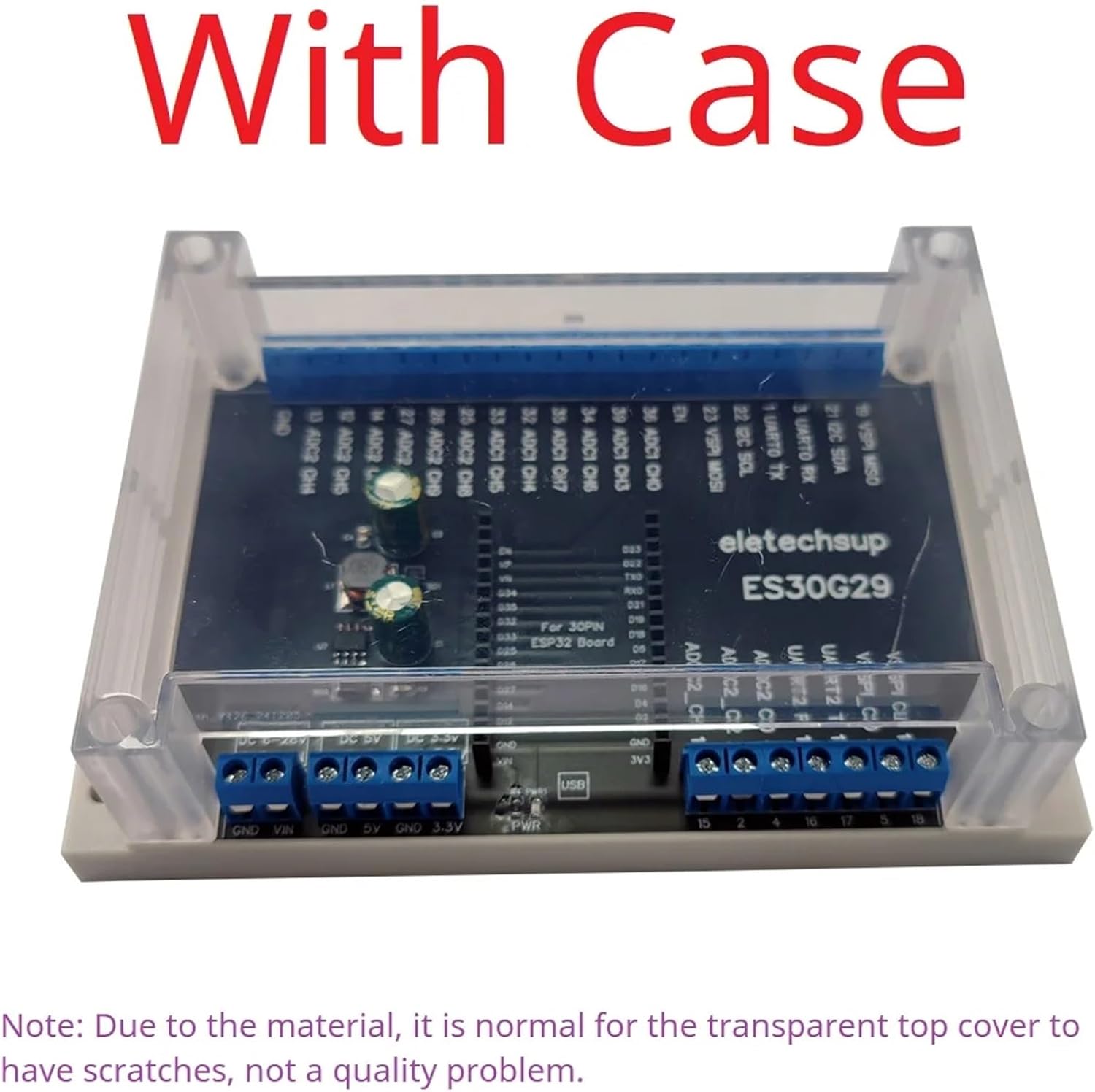

ES30G29 is a 30-pin ESP32 expansion board designed and produced by eletechsup. It has a DC-DC conversion circuit and can be powered by a DC 6-28V wide voltage. All IO ports are brought out and the second function is marked. It uses a transparent upper cover. While protecting the board, it is also convenient for development and design.Note: Due to the material, the transparent cover is easy to attract fingerprints and scratches. However, this shell is very strong and durable.This is a 30PIN ESP32 Transparent ABS Shell expansion board, which leads out all the IO ports.30PIN ESP32 Transparent Shell Multi-function Expansion BoardDual power supply (use only one): DC 6-30V/DC 5V1 Channel 3.3V 300mA power output (depends on ESP32 board)Lead out all ports and identify the port number and secondary functionSturdy ABS transparent top coverBottom cover with DIN35 and C45 railTerminal spacing: 5.0mm.Terminal Blocks: Wire Range 22-14AWG, Strip Length 5.0mm, Metric M2.5/M3 Phillips screwdriverSize: 122 *88 * 13mm(only Board),145X90X40mm(with Case)Weight: 66g(only Board),159g(with Case)Use:Transparent ABS Shell Mount Screw Terminal Adapter Module for 30 PIN ESP32 Board.With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.Notice:1 This product does not include the ESP32 Board2 Please use 30PIN ESP32,Pin width 25.4MM (Board width about 28MM)Top cover material: ABS transparentBottom plate material: ABS grayClip material: POM redSize: 145X90X40mmThe top cover is a transparent ABS shell.Advantages: tough and durableDisadvantages: easy to scratchNote: Due to the material, it is normal for the transparent top cover to have scratches, not a quality problem.
- Use:
- Transparent ABS Shell Mount Screw Terminal Adapter Module for 30 PIN ESP32 Board.
- With this adapter modules, you can easily extend your ESP32 projects to industrial control applications.

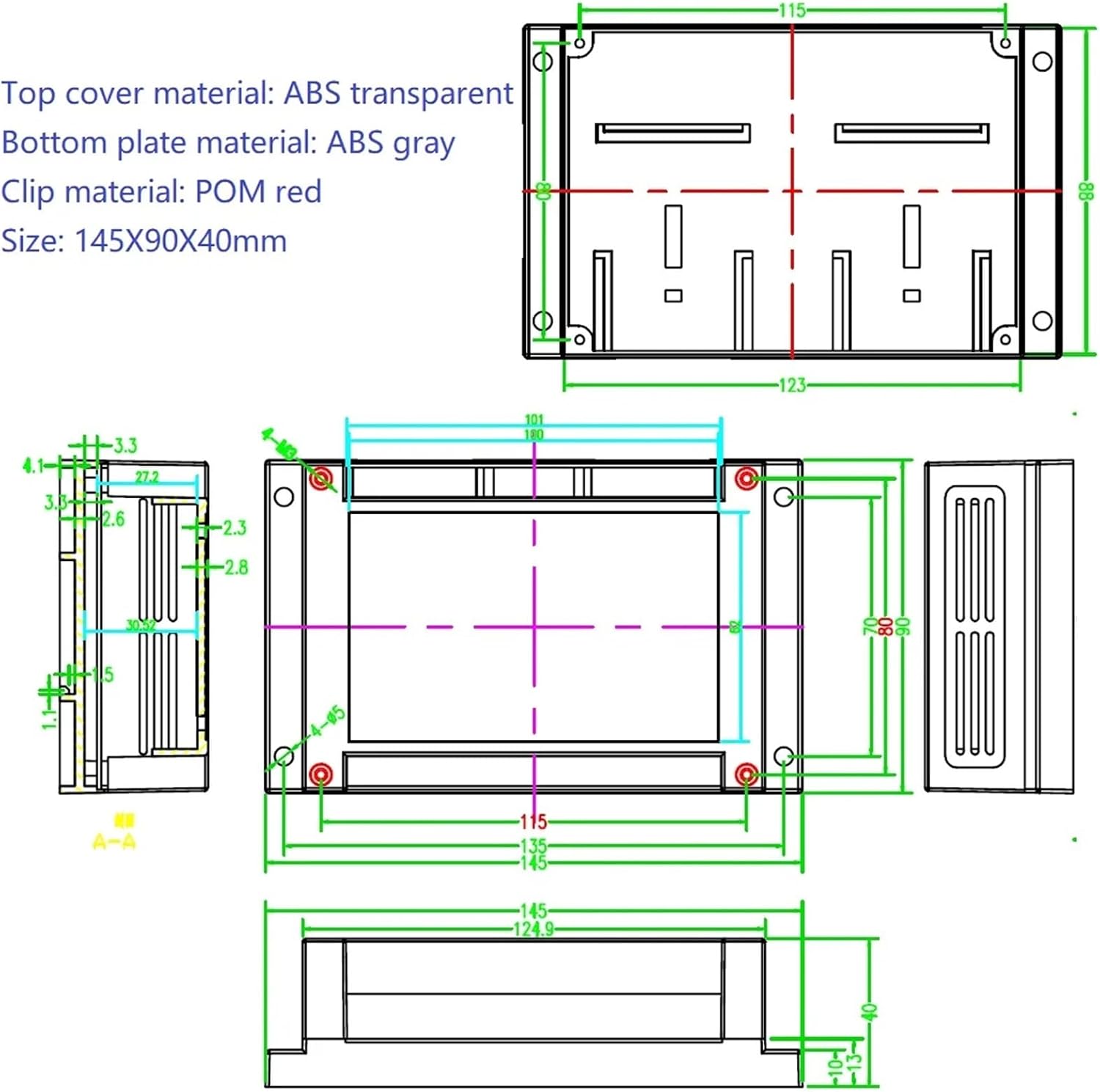

- Top cover material: ABS transparent；Bottom plate material: ABS gray
- Clip material: POM red；Size: 145X90X40mm
| ASIN | B0FBMDCM98 |
|---|---|
| Item Weight | 6.7 ounces |
| Manufacturer | EMCONRTOL |
| Item model number | ES30G29 |
| Package Dimensions | 5.91 x 3.94 x 1.57 inches |
